Connected
Controller

Watch Video  play-button
bgi-controller-video-mob bgi-controller-video

Introduction

The Z-Wave protocol is an interoperable, wireless, RF-based communications technology designed specifically for control, monitoring and status reporting applications in home automation or IOT. By far Z-Wave is the world’s market leader in wireless control, secure, reliable and easy-to-use 'smart' products. The products from different vendors and product categories (smart bulbs, sensors, sirens, smart switches, smart locks, security and Home automation etc.) can be a part of the same network.

In this network, all “listening” nodes act as message repeaters regardless of vendor. The connected controller(gateway) communicates with sensors & control devices over Z-Wave network and it doesn’t require an active internet connection to control the sensors and other devices in the network. This product can be operated with Z-Wave certified devices from preferred and other manufacturers.

Seamless Edge and Cloud Connectivity

ThingaOS platform manages sensor devices on "Edge" while dashboard reporting and event notifications are generated by our "Cloud". Our unique technology ensures proper actionable results on the edge preventing damages and reducing maintenance costs.

Supported Devices and Use Cases

50+ Command Classes are supported. Supports most of devices in real world DEEPLY Integrated within app and gateway

  • Works with Property management software
  • Improved Home safety and security
  • Flexible access control with smart locks
  • Efficient energy management
  • ALL multilevel sensor types and units
  • ALL notification sensor types, events and parameters
  • Door lock, User code, Schedule entry lock
  • Thermostat mode, fan mode, set point
  • Simple AV Control, IR audio/video control
  • Lighting control and automation
  • Schedule your appliances according to your needs
  • Smart switches for wireless control and automation
  • Notifications on event of water leaks, security break-ins, fire
  • RGB Bulb, Switch Color
  • Device Firmware OTA
  • Central Scene Controller
  • Smart meter

Water Leak Detection Use Case For Home Controller

One of the use cases is to ensure that a water leak is detected and an “instant notification” is provided to the property manager or homeowner or both to take immediate action.

Click Here

Automation

Scenes

  • Conditions, If ... and ... or ... then ... that
  • Schedule, support weekly, daily, once, moment
  • Control Sequence, support delay, sleep action
  • Smart Scene Template, support predefined scene template in real life

Alert Types

  • Conditional Triggers with AND, OR
  • Global Events, like security, tamper, device error
  • Weather Triggers, and other 3rd Party triggers

Alert Methods

  • Email / Mobile Push Message / SMS
  • VOIP Call
  • IFTTT

Differentiating Features

  • Dashboard for security events, energy profile and favorites
  • Device control , room, tag setting
  • Scene Creation
  • Z-Wave network management, backup and restore.
  • Multicast Control
  • System Upgrade, Account Management
  • Automation(if this then that, time based schedules etc)
  • Integrated with Alexa and Google Voice

Security Features

  • Supports all S2 security levels
  • Server side Authorisation for devices with QRcode label
  • Client side Authorisation for devices with input pad
  • Z-Wave QR Code Support

Specifications

Mechanical

Dimensions (HxWxD)mm
124 x 90.5 x 22.2 mm

Mounting
Table Top

Use Indoor

Operating Temperature
0 ~50 (32°F~122°F)

Relative Humidity
10% ~ 95% RH

Electrical

Input Power
Micro USB Port DC 5V/1A

Radio

Operating frequency Z-Wave
868MHz

Operating frequency Wi-Fi
2.4GHz

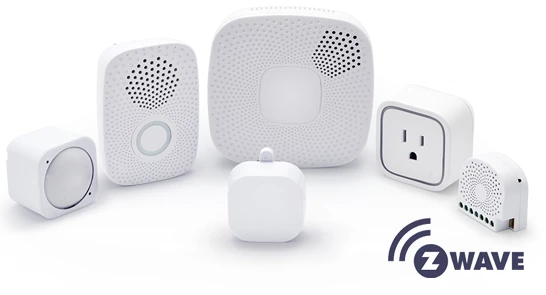

Z-wave devices

Download List of Z-Wave Devices

Supported by Tantiv4 Gateway

Download
setup-banners setup-banners mobile

FAQ

What is Z Wave?

It is a type of wireless protocol used for talking to home devices. This is a well-developed ecosystem, producing some of the cheapest and best devices. Zwave is a wireless technology that will not interfere with your Wi-Fi signal and operates on low power. Tantiv4's gateway enables these devices for an Internet-based operation in a user-friendly manner.

Can I buy off-the-shelf Z wave devices and integrate them with the Tantiv4 Gateway?

Tantiv4 Gateway is Z Wave Certified and can talk to any Z Wave Certified device. All the certified devices have the Z wave logo on them.

What is Z-Wave's range?

While Z-Wave has a range of 100 meters or 328 feet in open air, building materials reduce that range. The more line powered devices in your Z-Wave network, the better, as they also act as repeaters to extend the Z-Wave signal. Z-Wave’s mesh networking allows a Z-Wave signal to “hop” through other Z-Wave products to reach the destination device to be controlled.

How is Z-Wave powered?

Z-Wave is a very efficient, low-energy technology. While the Tantiv4 Zwave hub will need to be plugged in to keep the network up and running, many Z-Wave devices work on battery power alone, often for a year or more before needing new batteries.

How many Z-Wave devices can I control?

Z-Wave is a highly scalable technology – it can control anywhere from one device all the way up to 232 devices .

What are the command classes supported?

50+ Command Classes are supported. Supports most of devices in real world DEEPLY Integrated within app and gateway

What are the security protocols supported?

All variations of S2. Server Side Authorised, for device with QRCode label. Client Side Authorised for devices with Input Pad. Z-Wave 1st & 2nd generations QRCode Support

How is new Zwave device included?

Supports all the standard inclusion flows
